Arc-free Connection*

Interested?

Installed in your own withdrawable panels?

Upgrading your system?

e-con s.i guarantees your own
individual solution.

*if done consistently by the panel-builder

Product e-con s.i.

3 components only to create your fully withdrawable switchboard-system

The contact-module carries all functions of a conventional drawer-cassette incl. 2x 4-pole power-plugs up to 630 A; control plugs; mechanical test and operating-position and necessary mechanical interlocking for fale-safe operation. One unit with always the same size (up to 315A) grants to limit mechanical work to an absolute minimum.

The contact-module together with electrical switching and protecting devices installed on a common metal-plate creates the new draw-out –technology. Motor-starter up to 22 kW can be installed at a unit hight of 75 mm. Components up to 250 KW can be installed on unit-hight of 225mm only.

The movable and switchable contact-module forms together with the insulators of the vertical bus-section (busbar–module) and the cable-module an arc-fault–free zone.

Moduledarstellung

It is easy to implement the “energy-and signal-transfer-wall” to existing panel frames. Together with the contacting module the whole system becomes a self protecting unit with highest characteristics concerning short-circuit and is additionally proofed by “IPH in Berlin” to be arc-safe. The vertical bus-section which is completely encapsulated from phase to phase, the individual cable-modules located where necessary are ready to take individual drawers in steps of 75mm. The “energy-and signal-transfer-wall” can be easily installed within each switchboard and makes withdrawable technology together with the contacting module available and this at the highest level of personal safety.

Motor-Starter 160 kW; in draw-out position

Drawer-compartment with shutter-system; completely arc-safe; even when the drawer is in operating position.

Completed drawer-unit with motor-starter up to 22kW with profi-bus connected to the vertical bus-section via busbar-module and cable-module.



Kundenfotos Beispiel 4

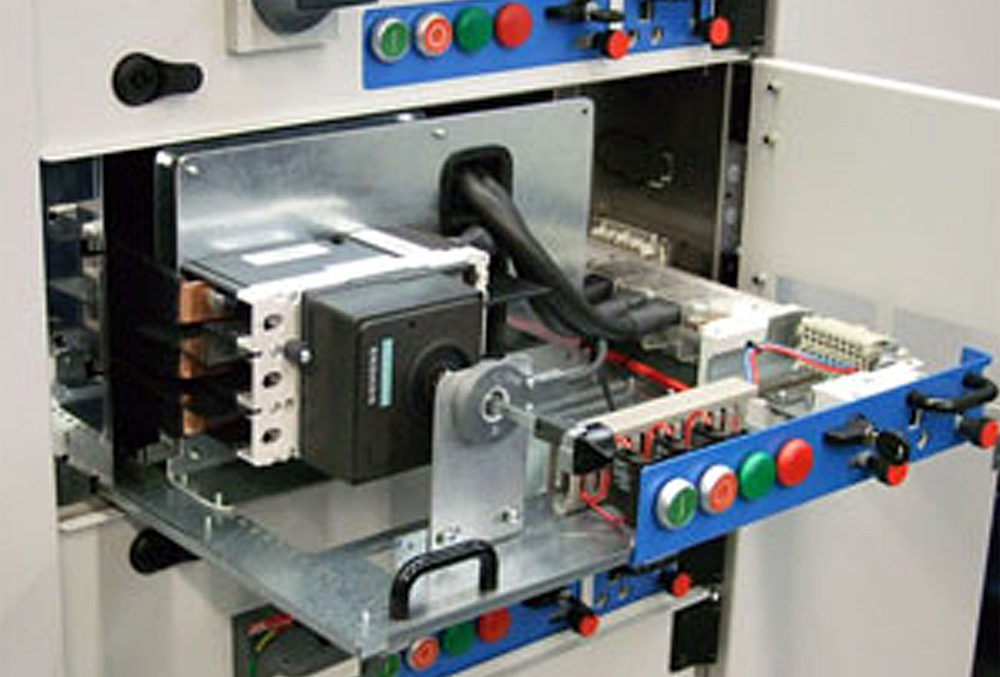

Motor-Starter 160 kW; in draw-out position

Kundenfotos Beispiel 5

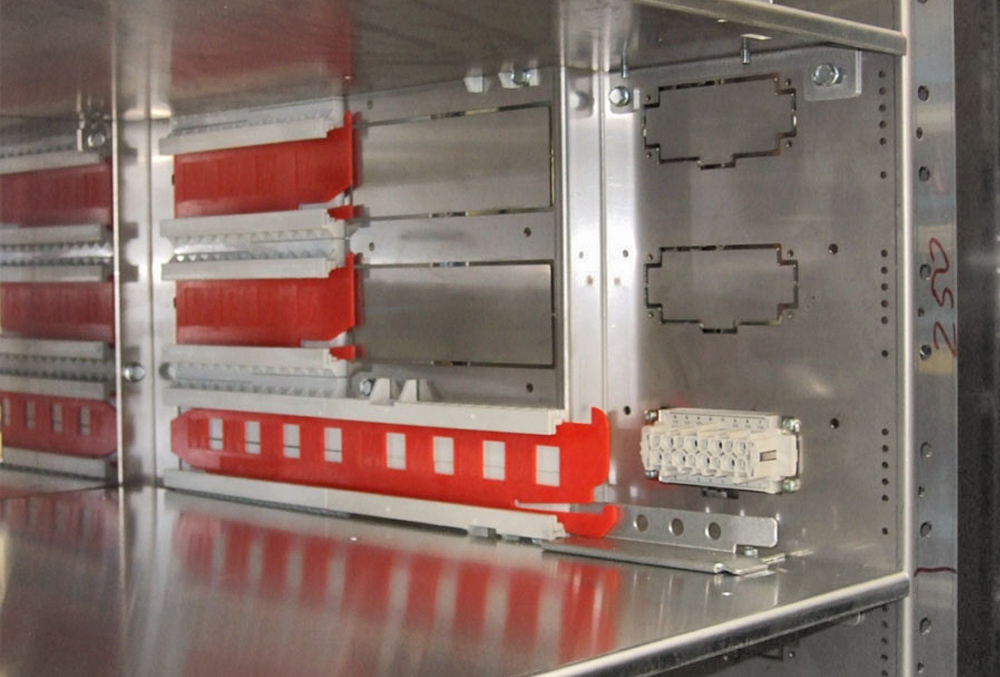

Drawer-compartment with shutter-system; completely arc-safe; even when the drawer is in operating position.

Kundenfotos Beispiel 1

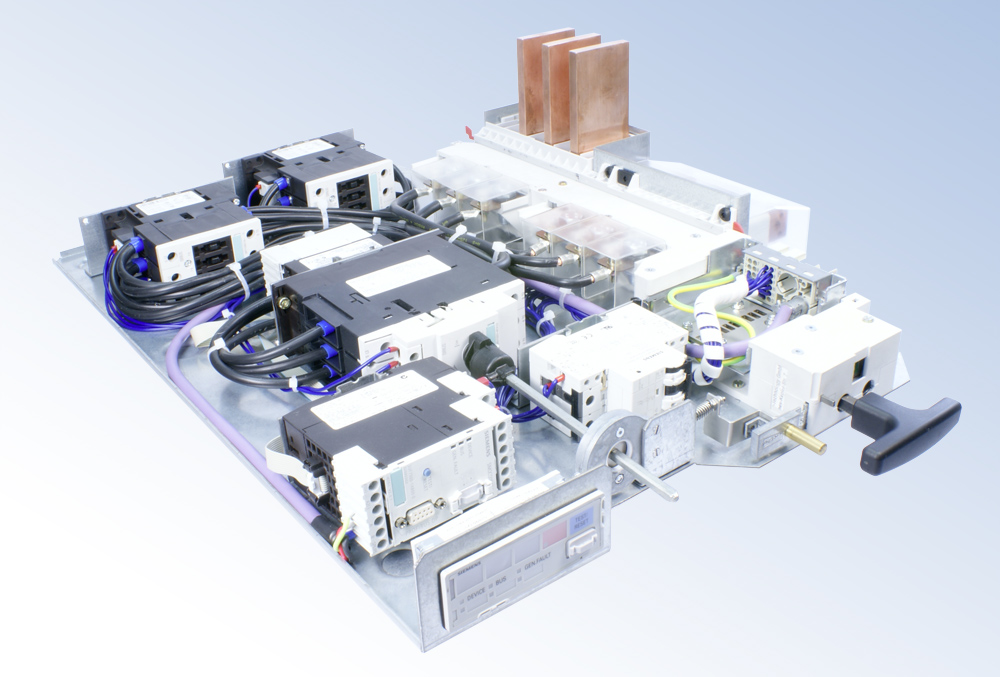

Completed drawer-unit with motor-starter up to 22kW with profi-bus connected to the vertical bus-section via busbar-module and cable-module.

Advantages of the new MCC-Technology

  • Fraunhofercontacting-module with completely new and improved characteristics, constructed together with Fraunhofer-Institut Germany
  • central energy- und signal-transferwall - panel-width flexible.
  • contacting-module and vertical bus-section are linked to each other in such a way, that both parts form a hermetical encapsulated unit. (arc-fault free zone)
  • contacting-module has one size up to 315 A.
  • 75 mm unit-hight for motot-startes up to 22 kW.
  • general use for fixed-mounted; plug-in and withdrawable technology.
  • operating between disconnected-test-operating-poition is fail-safe.
  • power-contacting is independent by mechanical tolerances.
  • All technical innovations are registered and patented.

e-con s.i. used by the cooperation-partners

Pictures will follow shortly

Quality control

Each unit passes its own control. The most important step is the control of the contact-pressure of the single contacts. Test-unit is able to measure 8 contacts at once and results are stored.



Our Areas & Specialties:

IDS-Technology GmbH specializes in the following areas: improved components for industrial, contact system, fixed switchgear system, MCC bus compatible systems, arc fault free, MCC’s (Motor Control Centers) , MCC bus compatible systems (i.e. profibus), arc fault free, type tested withdrawable, semi-withdrawable plug in type systems (i.e. Siemens, ABB Schneider Electric, Eaton, Rockwell etc.) and fixed low voltage and medium voltage switchgear and distribution boards.
